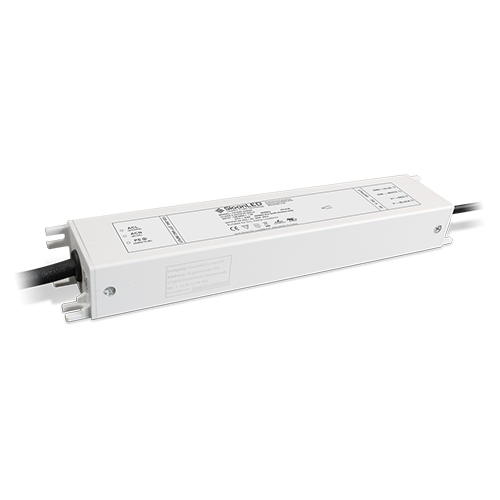

24S2 Power Supplies
Exceptional performance
The 24S2 24 VDC 100 Watt dimmable power supplies deliver exceptional performance and reliability in damp and dry sign applications.
- Universal input voltage: 108-277 VAC, 50-60 Hz
- Suitable for dry, damp applications
- 3-Way dimming controls (0-10 V, PWM, resistance), PWM dimming output (701895-24S2D only)
- Auto-resetting – No fuses to replace or circuit breaker to reset – Short circuit protection automatically resets when the short condition is corrected
- Simple secondary hook-ups – No minimum load or load balancing required
General Specifications
Voltage
24V
Operating Temperature
-40° C to +60° C
Protection Class
IP54
Certifications
CE
Warranty
5 Year
Available Accessories
| Product Name | Product Type | Part Number |
|---|---|---|
| 24S2 100W Power Supply | Power Supply | 701895-24S2D |
Available Documents
Document downloads are not available on mobile devices.
Downloads are only available for registered users. You can login here.
| Filename | Document Type | Last modified | Language | |
|---|---|---|---|---|
| 24S2 Power Supply - Specsheet English | Spec Sheet | 14 May 2025 | English |
